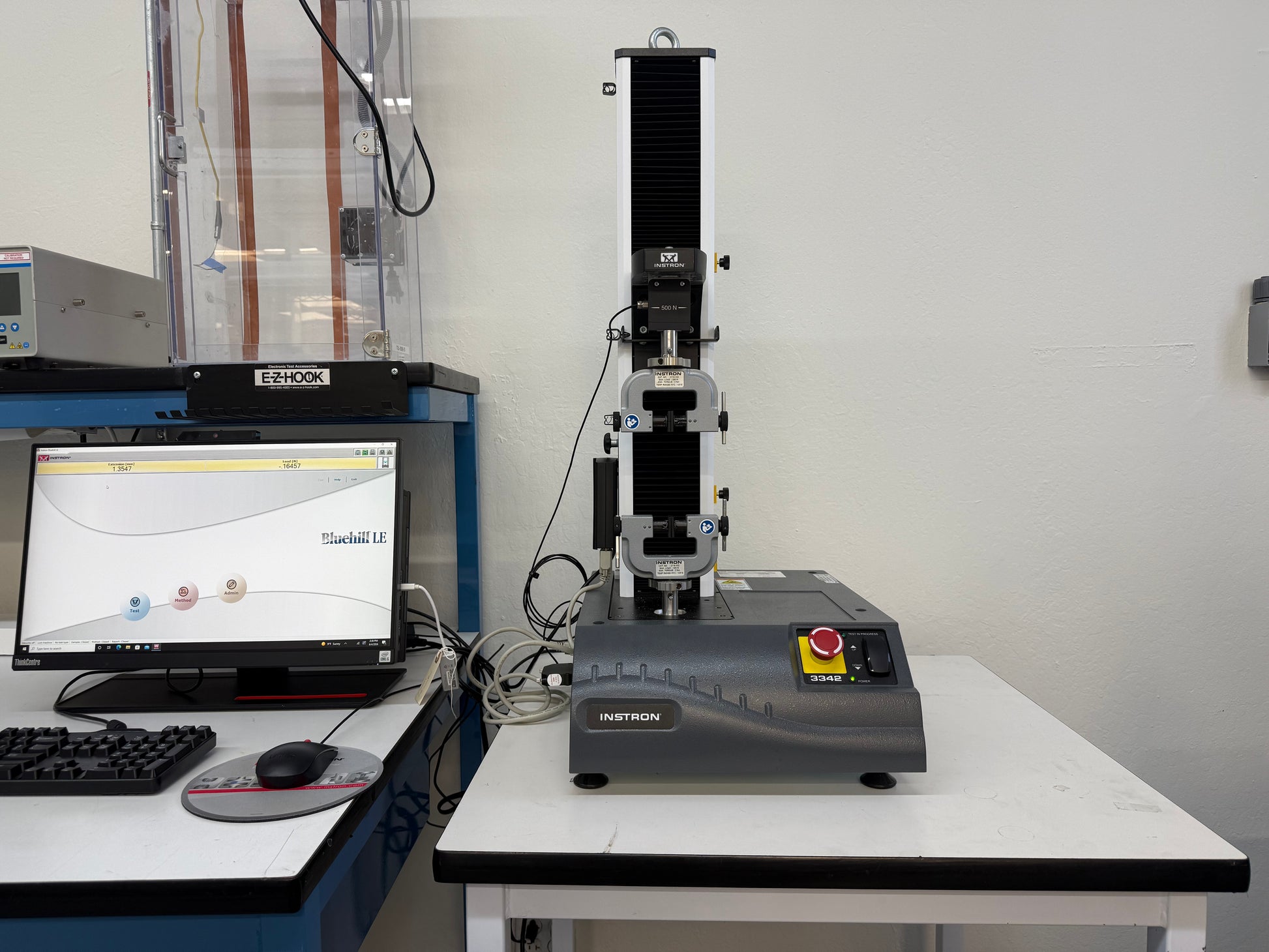

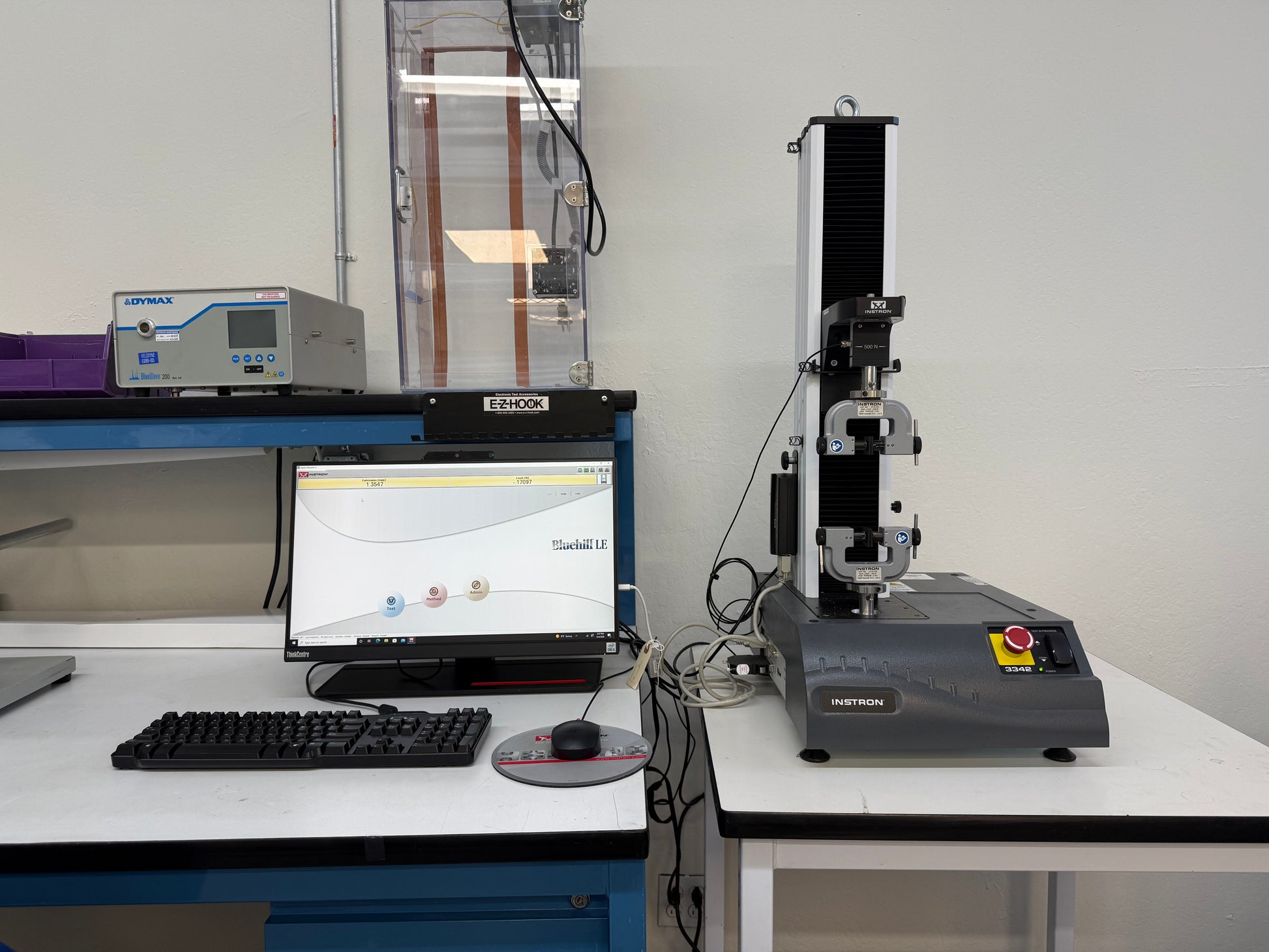

This Instron 3342 Single Column Testing System is in excellent used condition and has been well maintained. The system is ideal for a wide range of tensile, compression, peel, and general material testing applications in laboratory, quality control, and research environments.
Specifications:
Load Capacity: 112.5 lbf
Maximum Test Speed: 40 in/min
Return Speed: 60 in/min

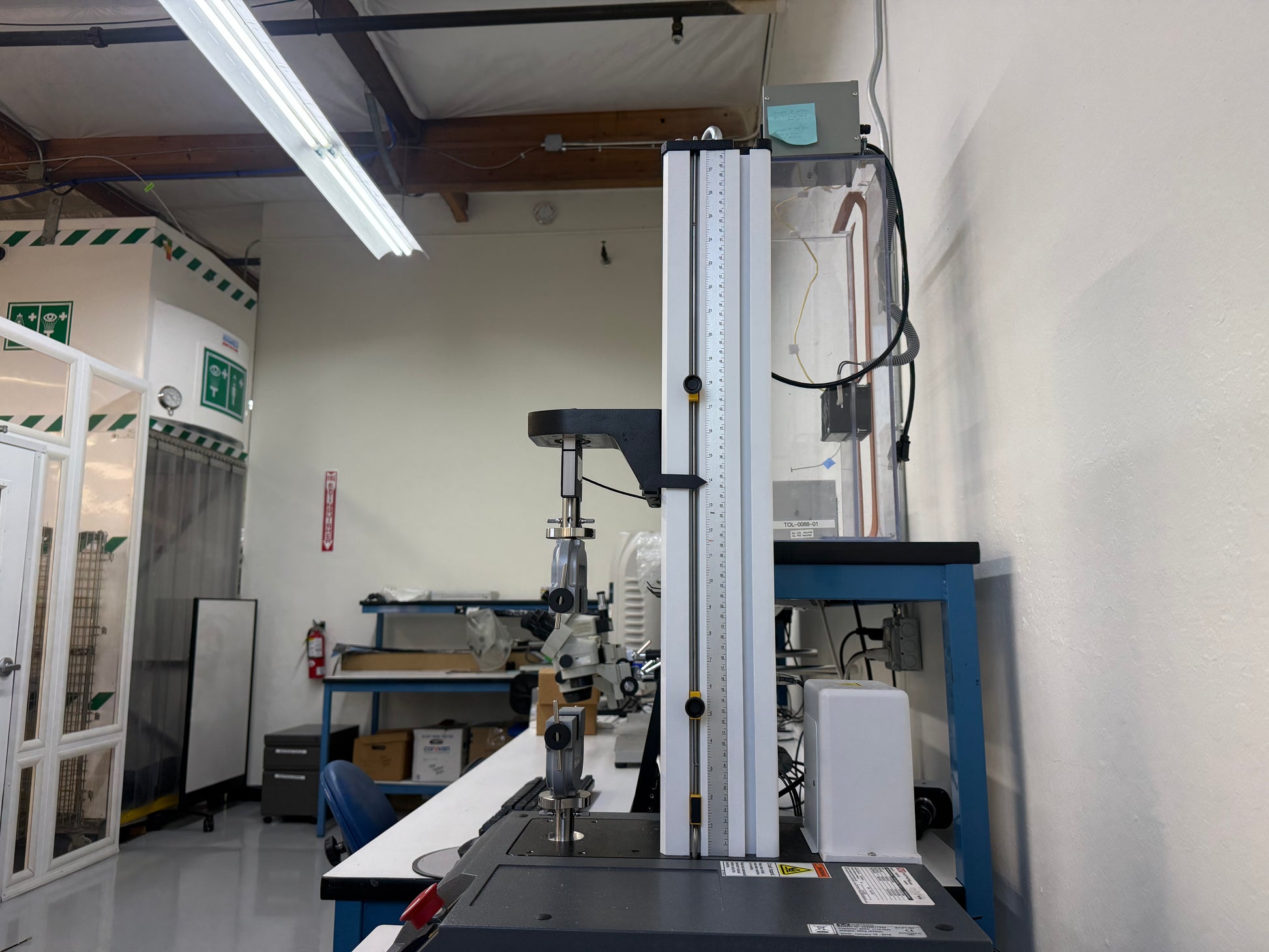

Total Crosshead Travel: 19 in
Maximum Vertical Test Space: 25.6 in
Throat Depth (Space Between Columns): 3.9 in
Dimensions (H × W × D): 35.4 × 15 × 19.7 in
Weight (with typical load cell): 83 lbs
This compact and reliable testing system offers precise force and displacement control, making it an excellent choice for material characterization, product validation, and quality assurance testing.

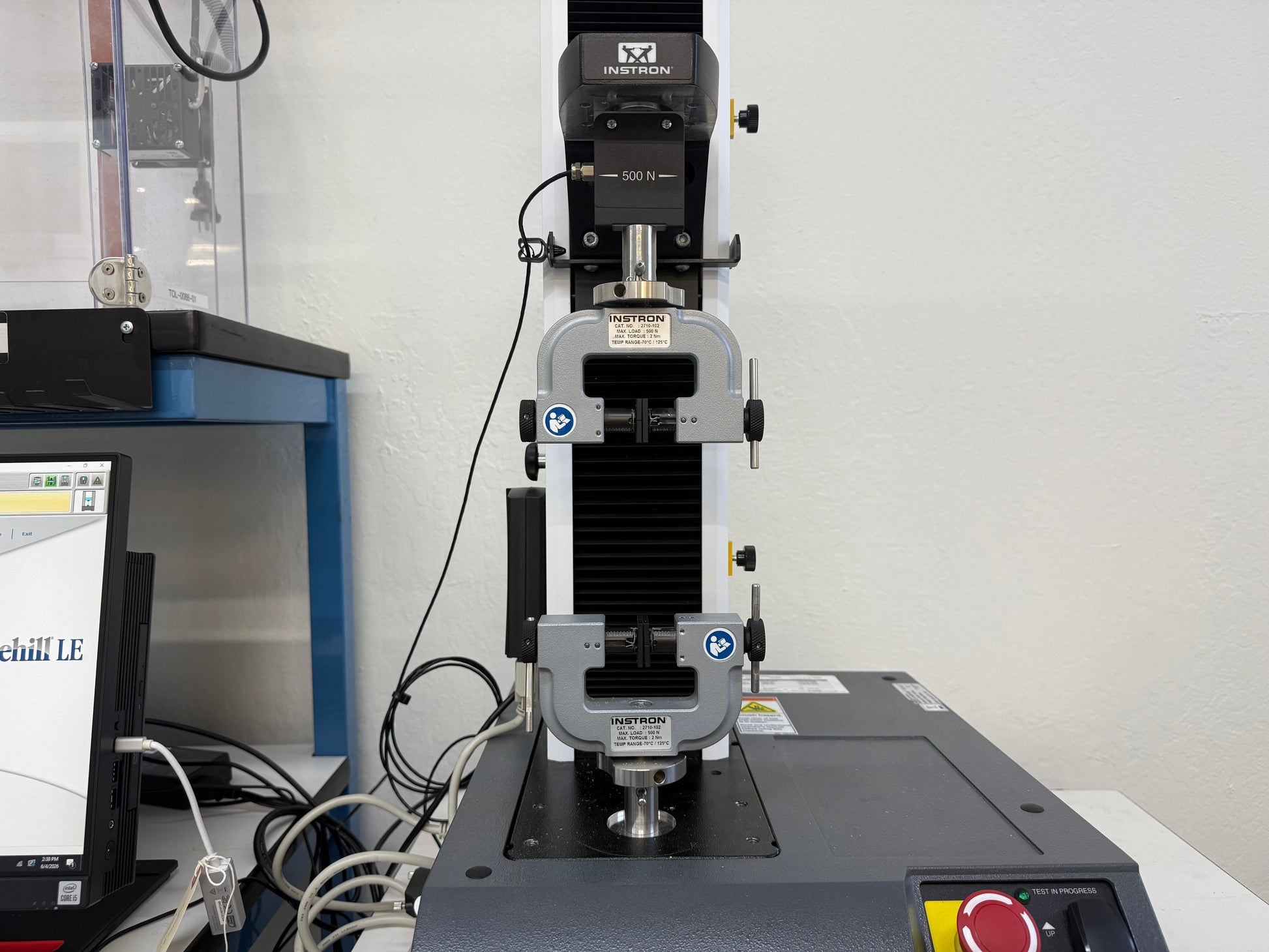

Included Accessories: Grips, Force Gauge, Computer, Software, and all other accessories shown in the photographs.
