Hughes 300 Gallon Emergency Tank Shower

Hughes 300 Gallon Emergency Tank Shower

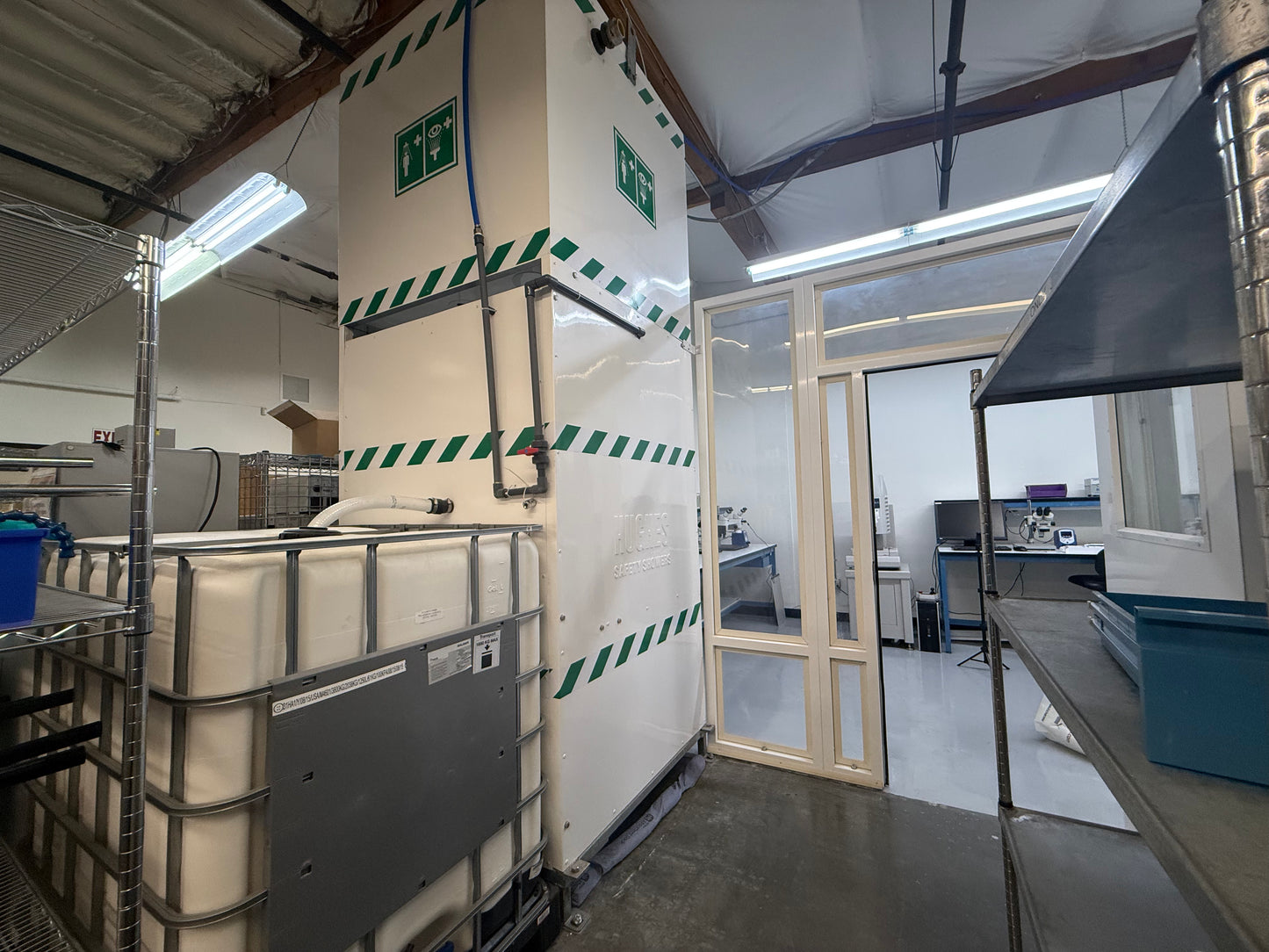

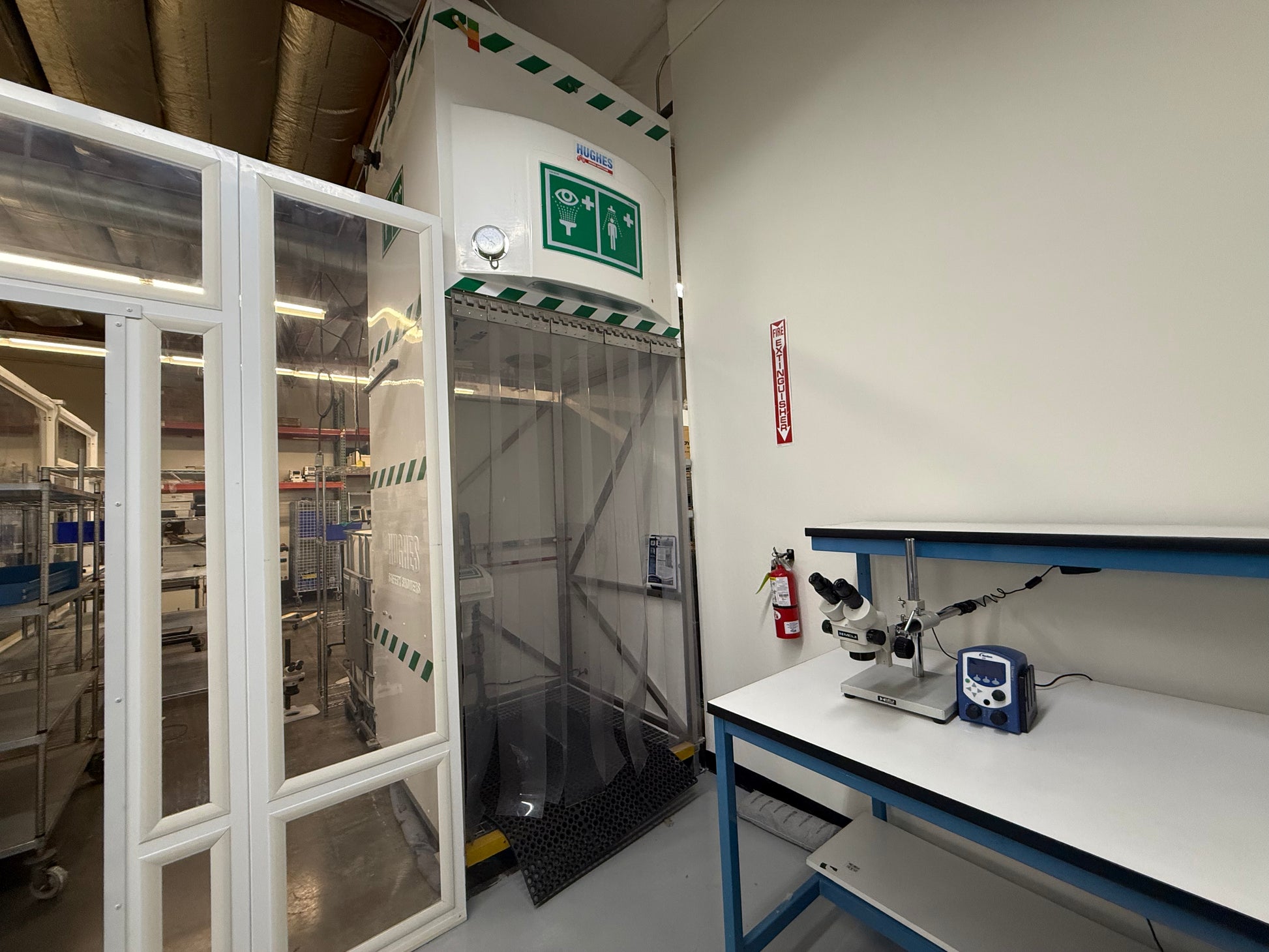

The Hughes Emergency Tank Shower is designed for workplaces where mains water pressure is unavailable or impractical. With a 317-gallon (1200 liter) insulated tank, it provides a reliable supply of tepid water, ensuring safe and compliant emergency response.

An integrated 110V immersion heater, controlled by a dual safety thermostat, keeps the water at a consistent temperature within an operating range of 14°F (-10°C) to 104°F (40°C). In an emergency, the shower activates instantly with a push of the panic bar, while the built-in eyewash station engages by lifting the lid.

Key Specifications

• Model No: QS1200

• Tank Capacity: 317 gal (1200 L)

• Dimensions: 139” H × 67” W × 61” D (3531 × 1702 × 1702 mm)

• Net Weight (Empty): 750 lbs (340 kg)

• Filled Weight: 2644 lbs (1198 kg)

• Water Flow:

• Shower: 20 US gal/min (76 L/min)

• Eye/Face Wash: 3 US gal/min (11.4 L/min)

• Operating Pressure: 8–145 PSI (0.5–10 bar g)

• Materials: UPVC & Stainless Steel pipework, GRP composite bowl

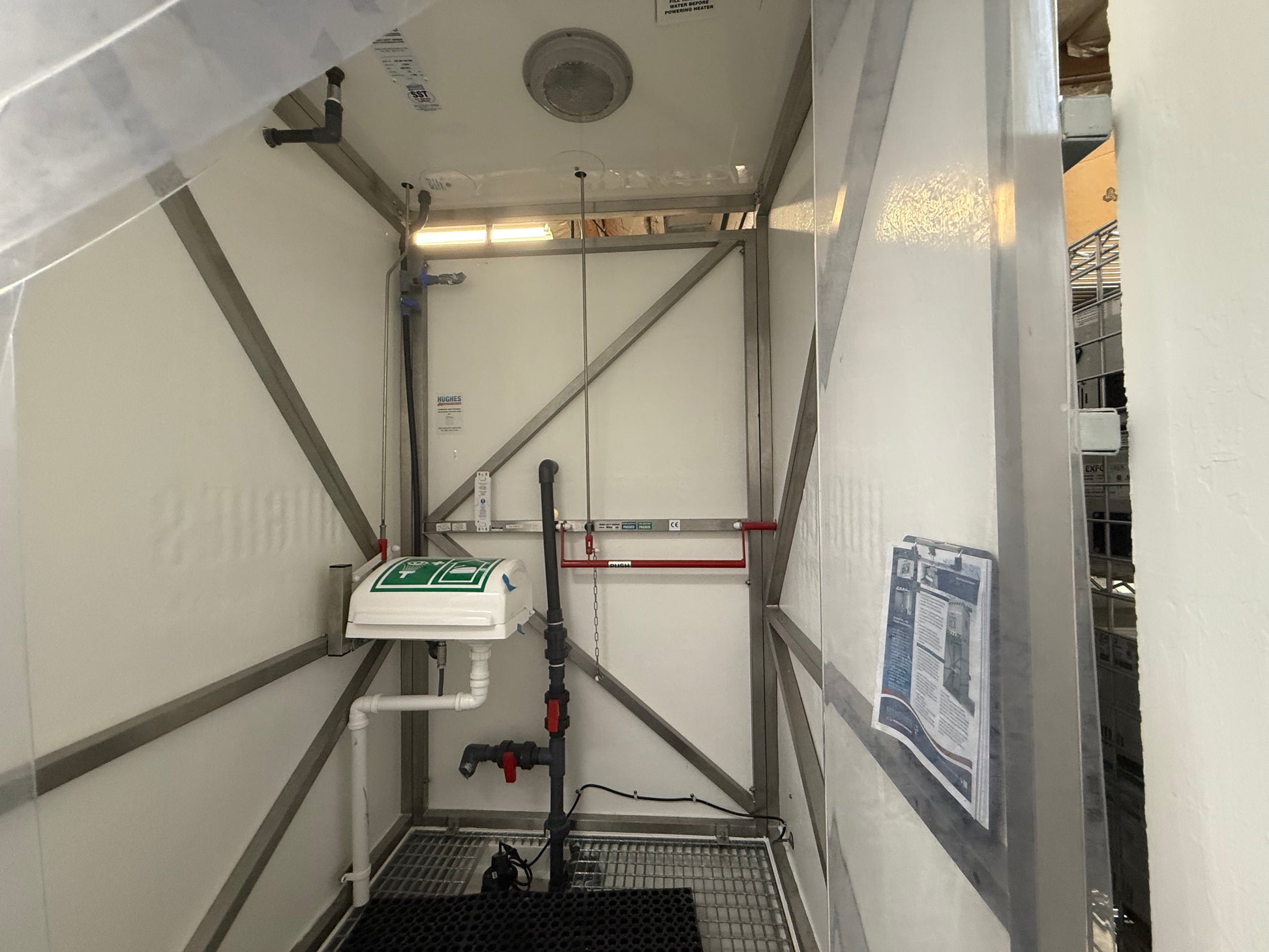

• Activation: Push bar (shower), lift lid (eye/face wash)

• Heater Load: 1700 W, 110V single phase, 60/50 Hz

• Duration of Operation: 13 minutes

Features & Benefits

• Self-contained safety solution for locations without a plumbed water line

• Insulated tank with immersion heater ensures a constant tepid supply

• Durable construction with UPVC, stainless steel, and GRP composite materials

• Easy activation with panic bar and lift-lid mechanisms

• ANSI-compliant (with plumbed water source) for full 15-minute operation

Original Price: $32,000

(Clerance)
