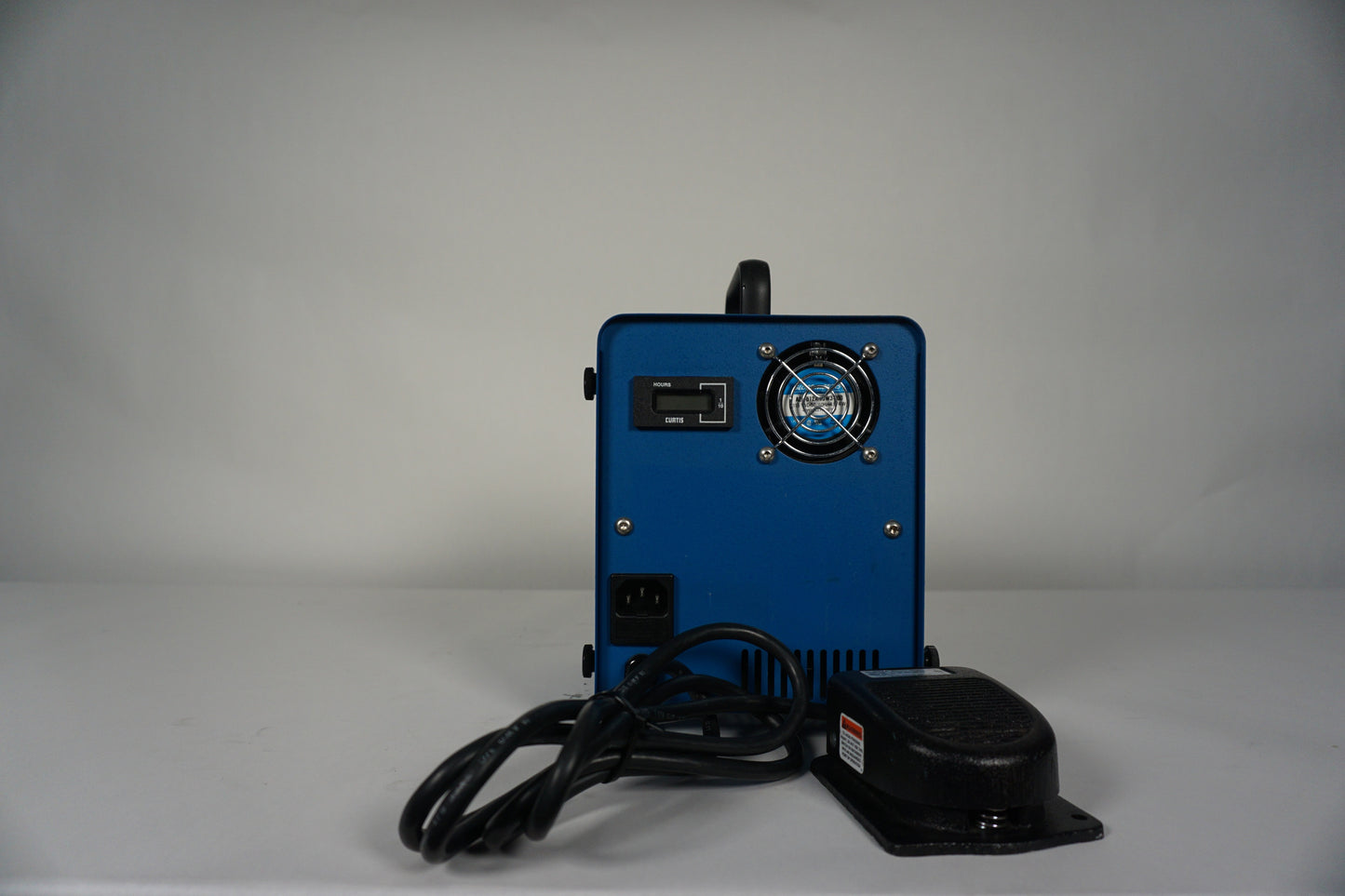

Dymax Light-Welder PC-3

DESCRIPTION: Light-Welder® PC-3 Overview

The Light-Welder® PC-3 is a specialized UV curing lamp designed for precise curing of UV-based adhesives, coatings, and potting materials. Emitting a 5 mm diameter UV light spot through a liquid light guide, this versatile lamp offers flexibility - it can be hand-held for dynamic applications or securely fixed at work stations for repeated tasks.

Key Features:

• Compact Design: The unit houses a 50-watt power supply, a cooling fan, lamp/reflector assembly, circuit protection, and an integrated shutter system.
• Mobility: A removable light guide ensures the lamp is adaptable for both hand-held and fixed operations.
• Safety Measures: The unit doesn't emit light when the light guide is detached. Plus, an additional filter can be added to the light guide's output end to minimize visible light output when required.
• Longevity: The lamp is designed for a lifespan of 500 hours, but can extend up to 1000 hours depending on usage.
• Power Supply: Compatible with multiple line voltages (100, 120, or 220 Vac) and either 50 or 60 Hz frequencies, the device is set by the factory. It uses a transformer and a full-wave bridge rectifier to convert AC voltage to DC. An in-built high voltage winding ensures lamp ignition, and a blocking diode safeguards the regulator circuit from potential damage.
• Reignition: Should the lamp turn off due to brief power interruptions, it will automatically restart once cooled, provided the power switch remains on.
• Cooling: An in-built fan ensures optimal operating temperatures for both the lamp housing and internal power components.
• UV Source: It employs a 50-watt short arc mercury vapor lamp, precisely positioned within a reflector to guarantee maximum light output.
• Consistent Performance: The Light-Welder® PC-3 is engineered for uninterrupted, continuous use.

(All Clearance Items Sold as Untested)

Dymax Light-Welder PC-3 Medium Intensity UV Spot Lamp Specs

(Comes with Light Guide and accessories)
