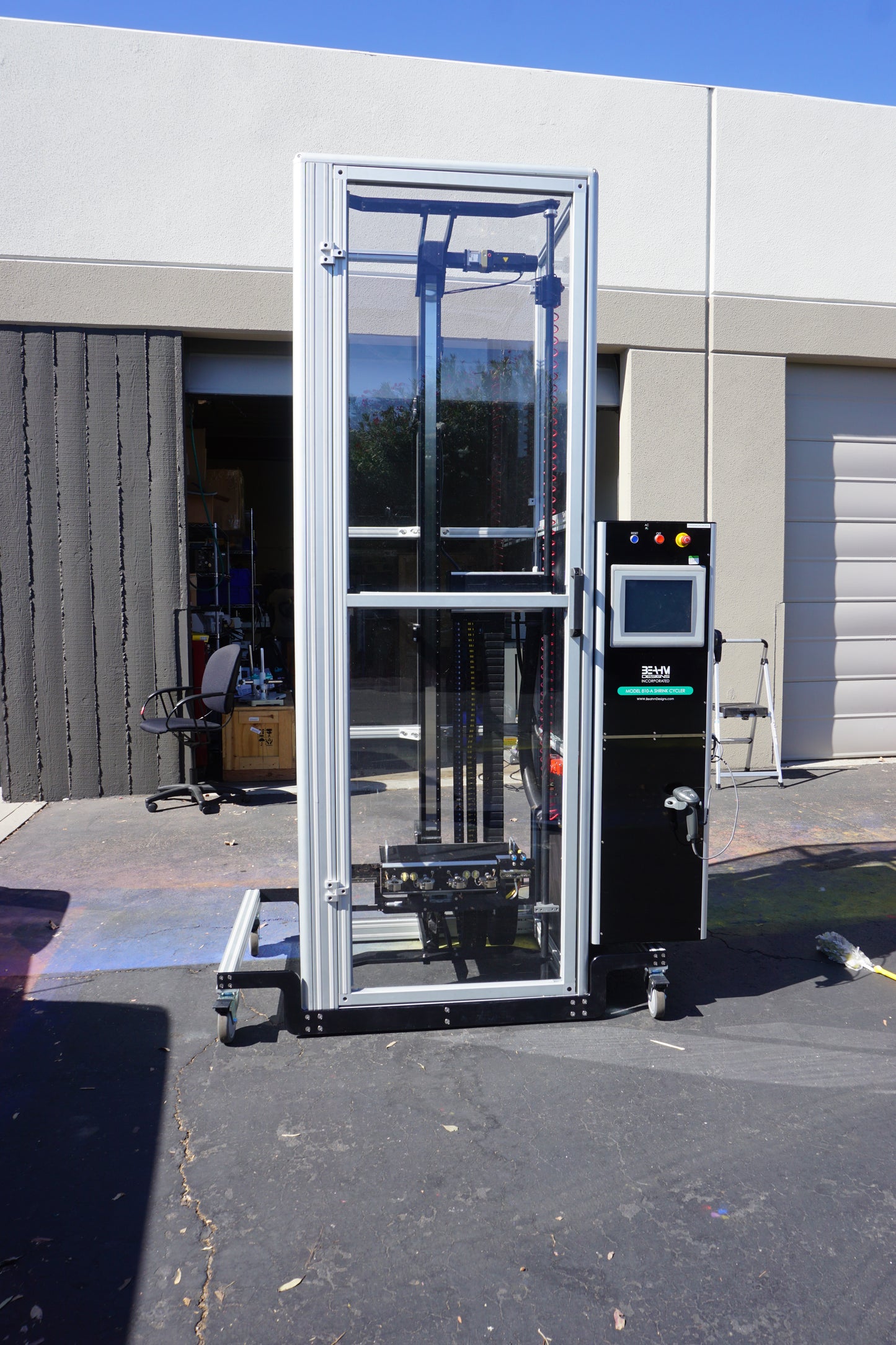

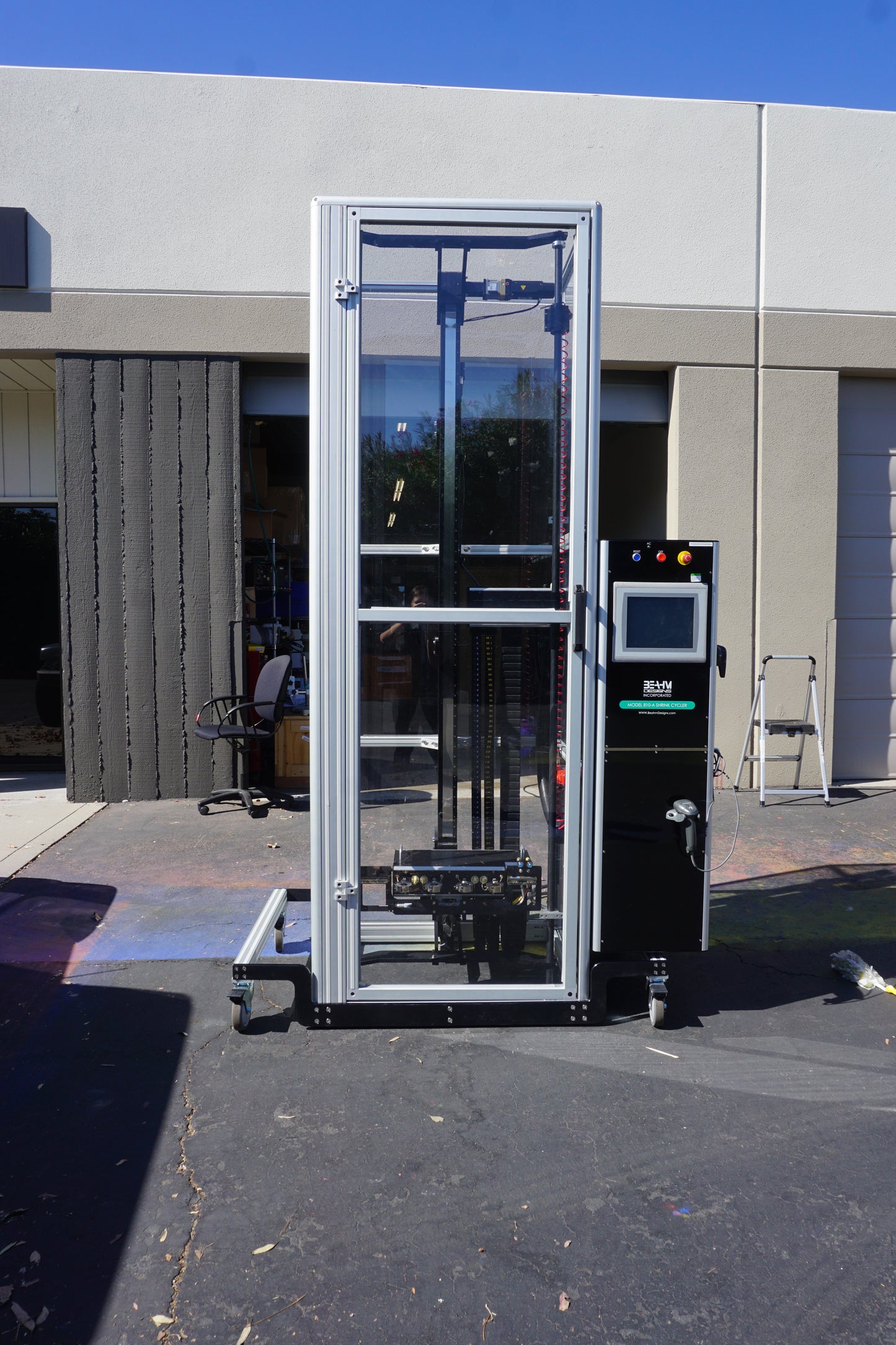

Beahm 810-A Vertical Laminator

The Vertical Laminator (810A) is engineered for exceptional repeatability and uniformity in lamination processes. It features a comprehensive selection of thermal nozzle options, including the Vortex 360-degree model, to provide precisely controlled heated air. The system ensures consistent results by moving these nozzles at a carefully controlled speed and utilizing tubing centering guides for accurate positioning of catheters within the heat zone.

Key features include the ability to input traverse speed and length settings through a user-friendly touch-screen HMI, with a motion controller guaranteeing exact precision and repeatability. This advanced system supports multiple length and speed adjustments within a single cycle and across the heat zone, along with independent temperature regulation for each nozzle.

Designed to Fulfill Manufacturing Demands:

• Tooling: Comes with a variety of process-appropriate thermal nozzles, including the Vortex 360 degrees.

• Temperature Range: From ambient up to 750°F.

• Performance: Ensures unmatched consistency and uniformity across processes.

• Flexibility: Allows for various length and speed changes in one operation.

• Capacity: Processes up to 4 components simultaneously, with options for 6-Up configurations on request.

• Precision: Offers high accuracy in traverse speed and length settings.

• Control: Features independent temperature settings for each nozzle.

• Versatility: Provides up to five programmable rates and distance settings.

• Traverse Length: Standard length of 175cm, with custom lengths available.

• Functionality: Enables users to name and save parameter configurations for easy recall.

This Vertical Laminator is an indispensable tool for achieving the highest standards in catheter manufacturing, offering flexibility, precision, and reliability in every cycle.
